AMX Bolts and Nuts Sizes
Bolts and Nuts sizes
All the below sizes are also applicable to the nothng e-bike

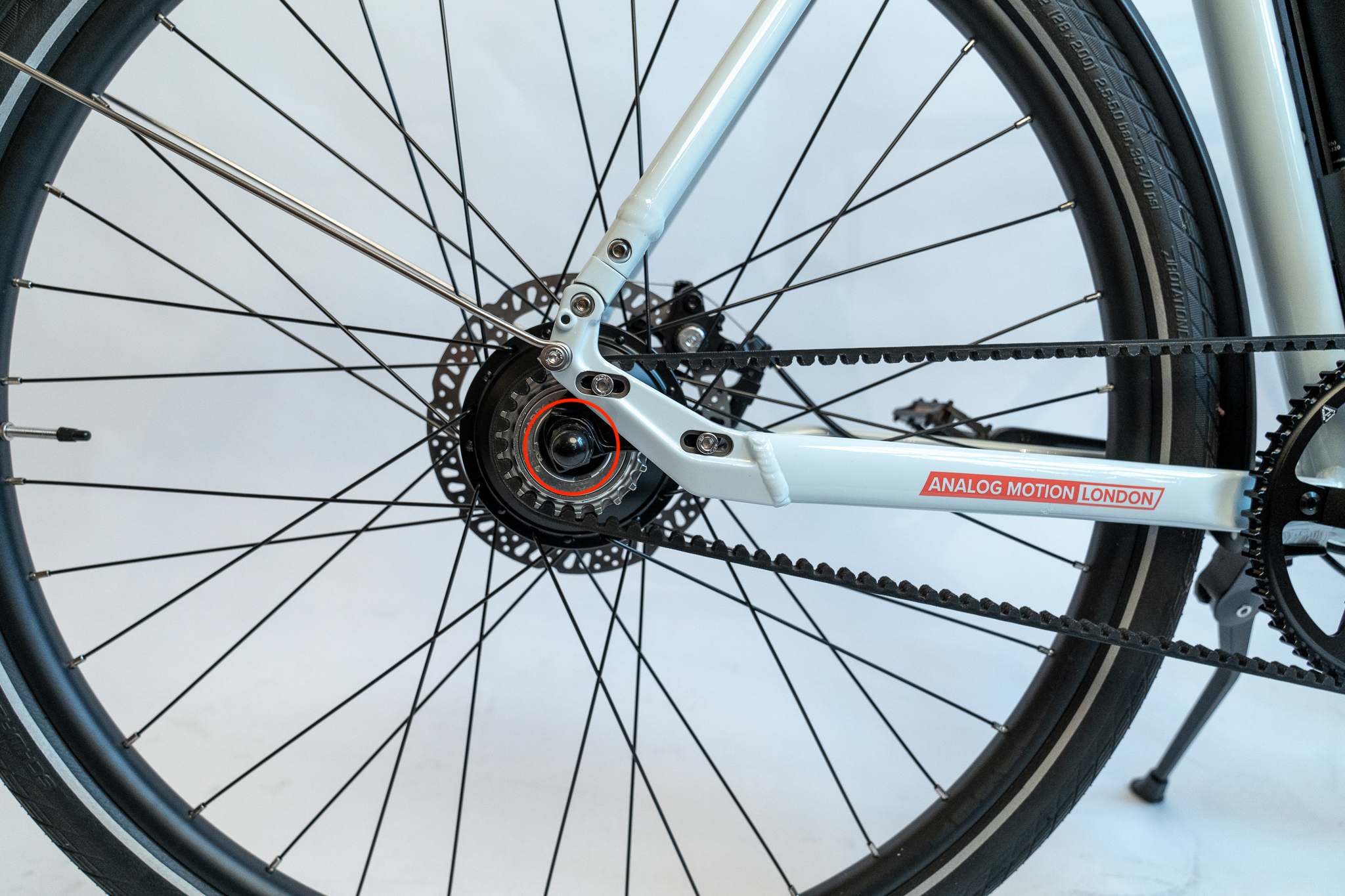

![]() | Rear wheel nut: M12 x 1.25mm (screw size x pitch) |

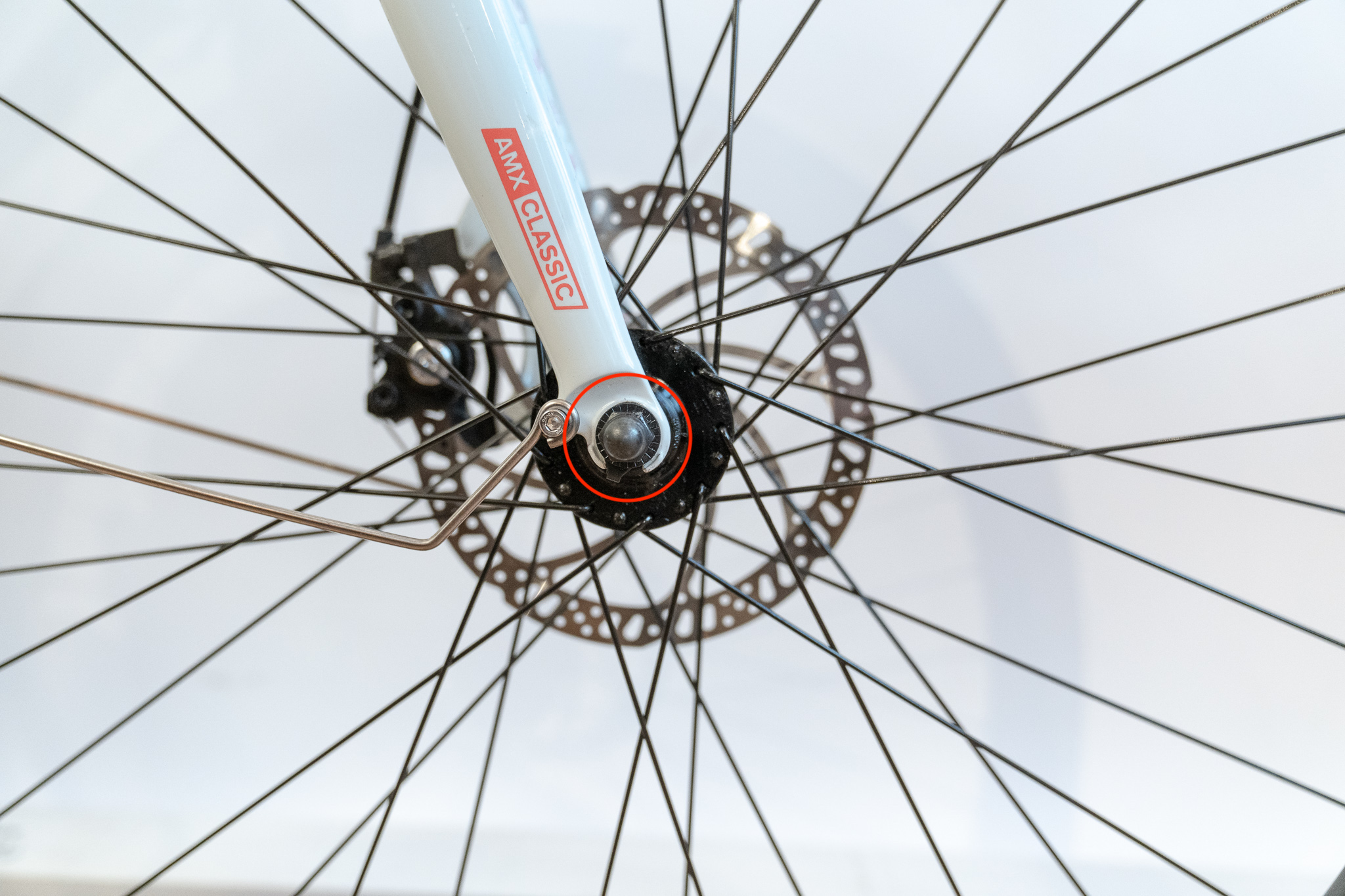

![]() | Front wheel nut: M10 x 1.0mm (screw size x pitch) |

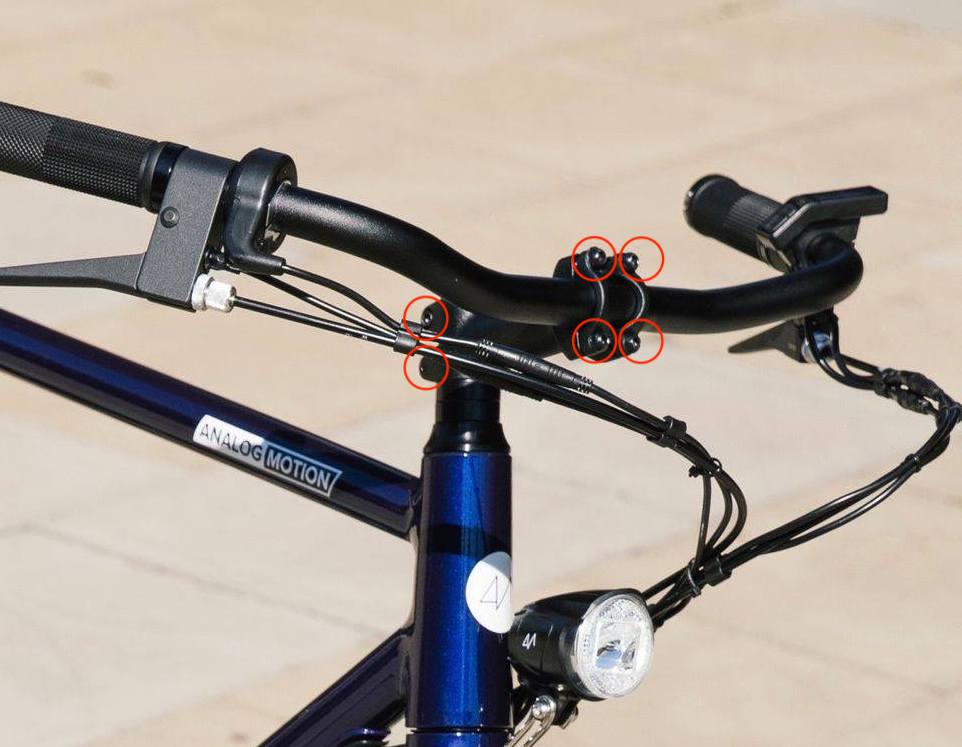

![]() | Handlebar / Stem bolt: M6x20mm (screw size x length) |

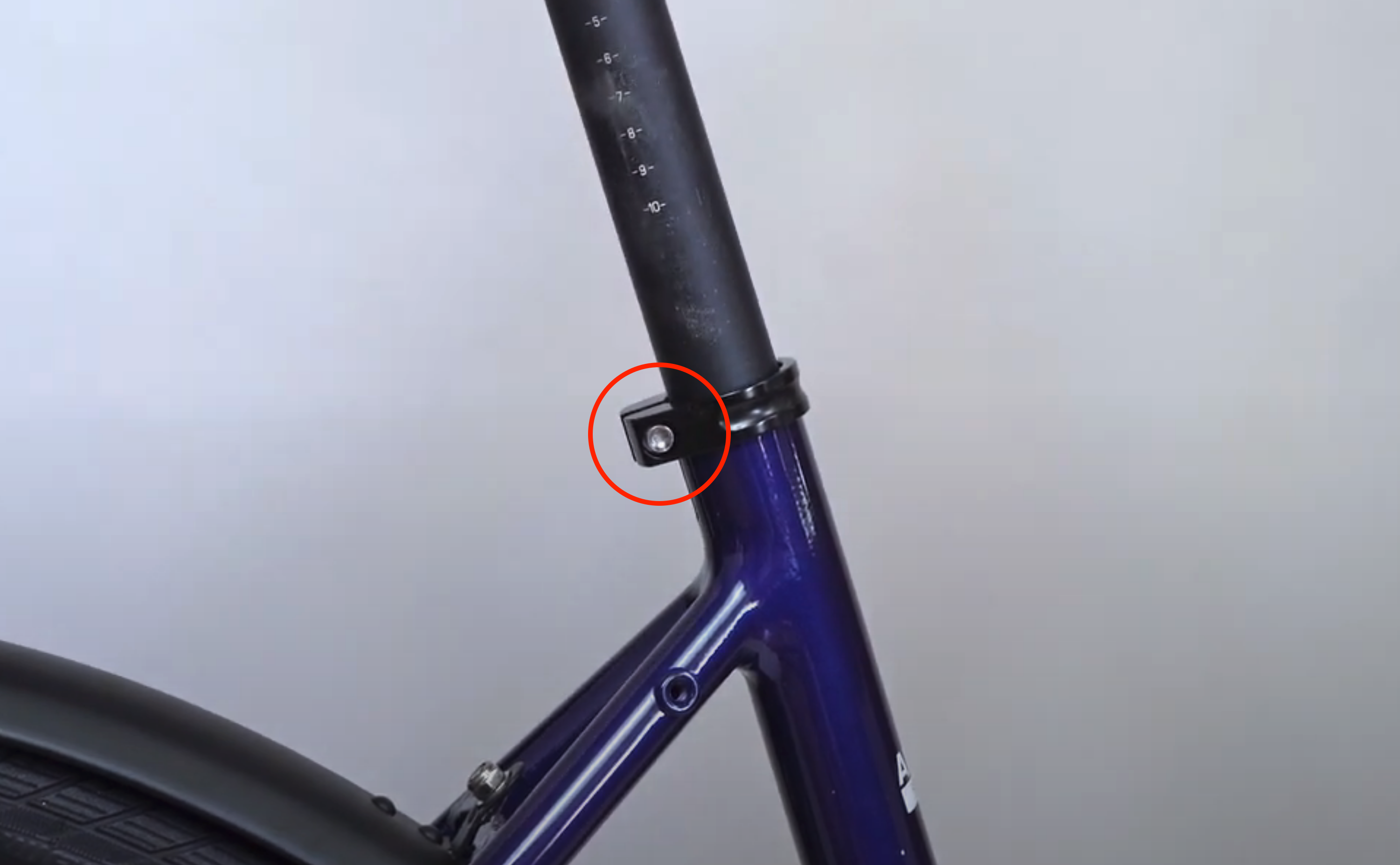

![]() | Seat clamp bolt: M6X20mm (screw size x length) |

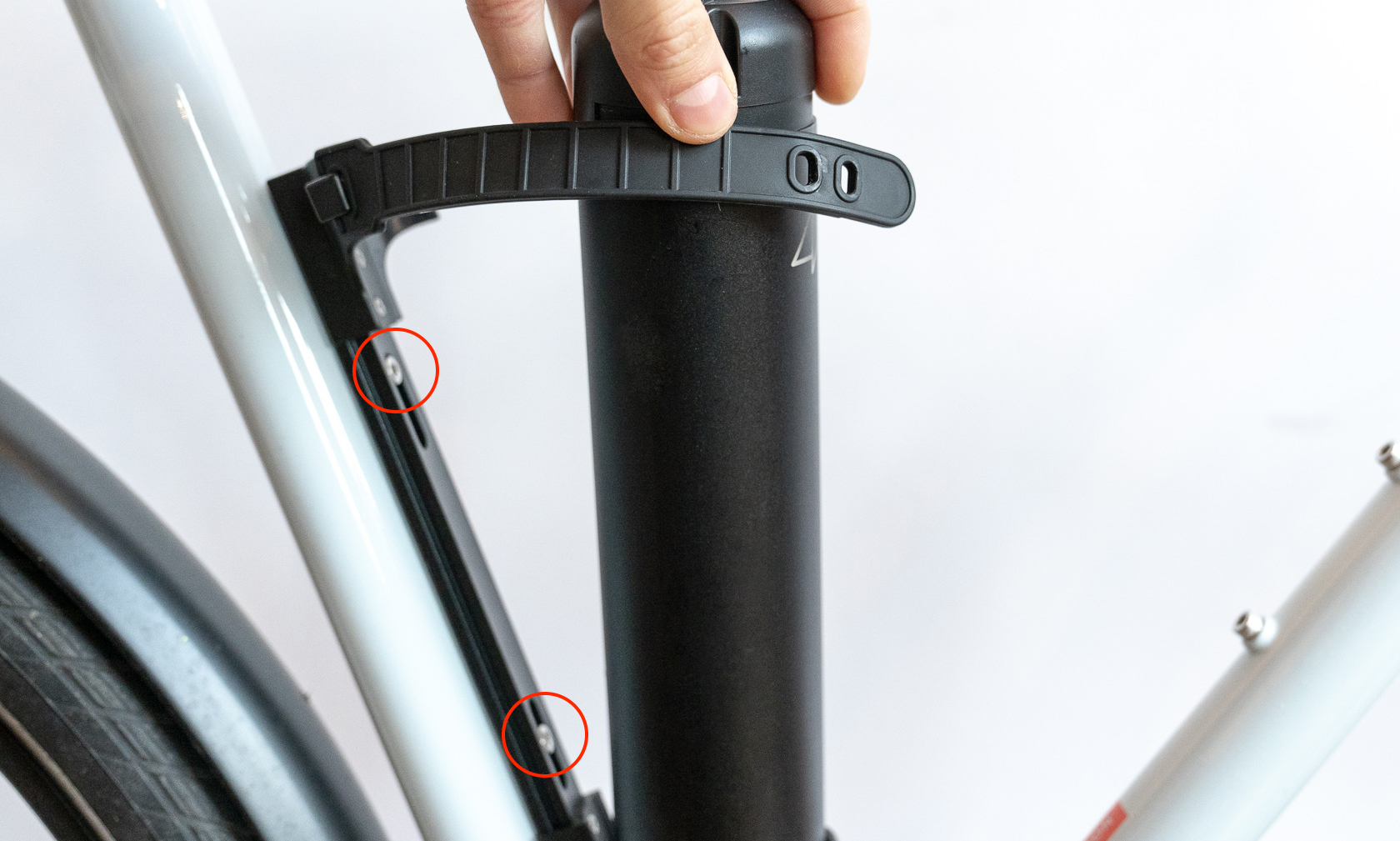

![]() | Controller bolts: M5x12mm (screw size x length) |

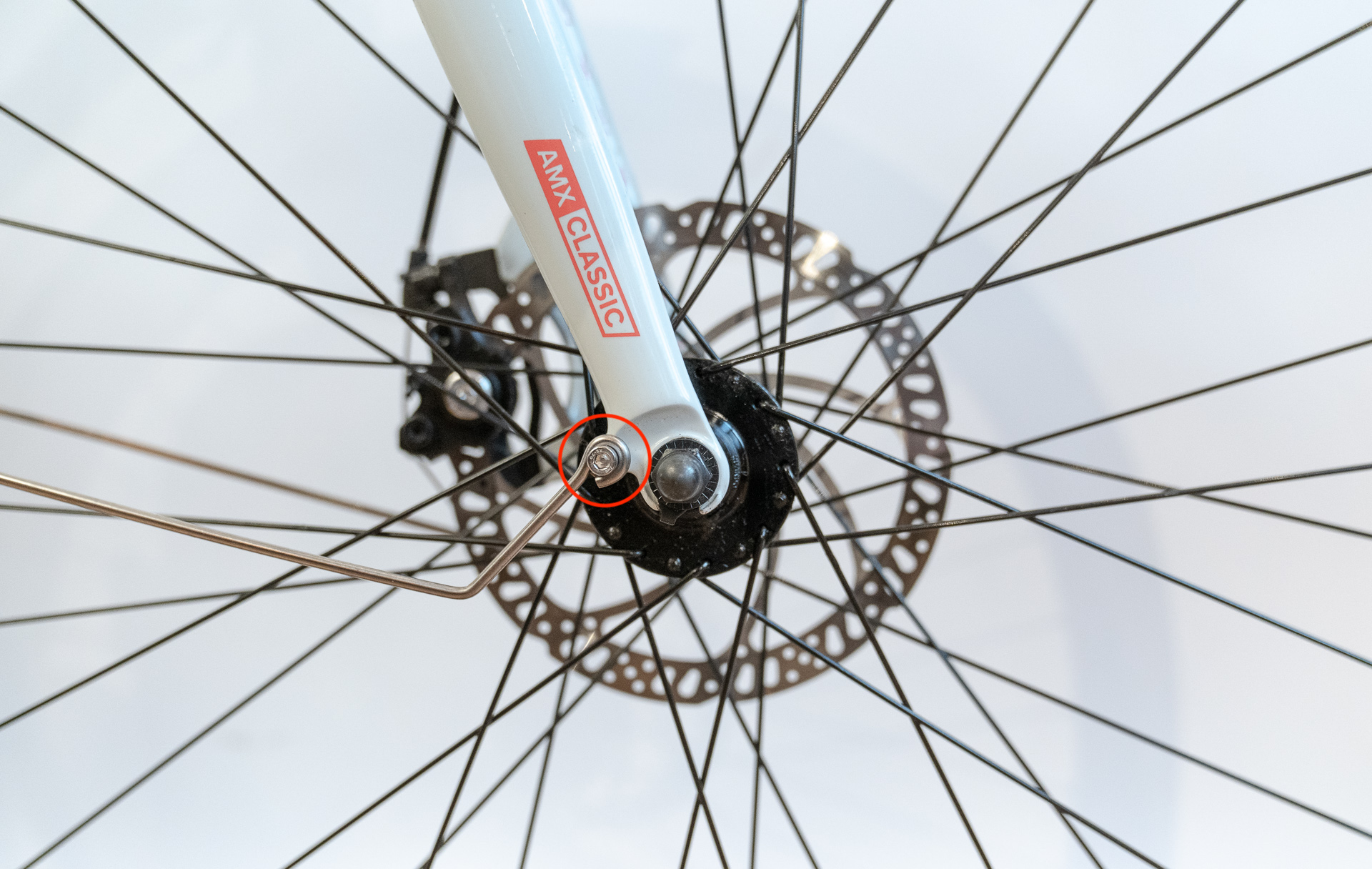

![]() | Fenders and rack bolts: M5x12mm (screw size x length) |

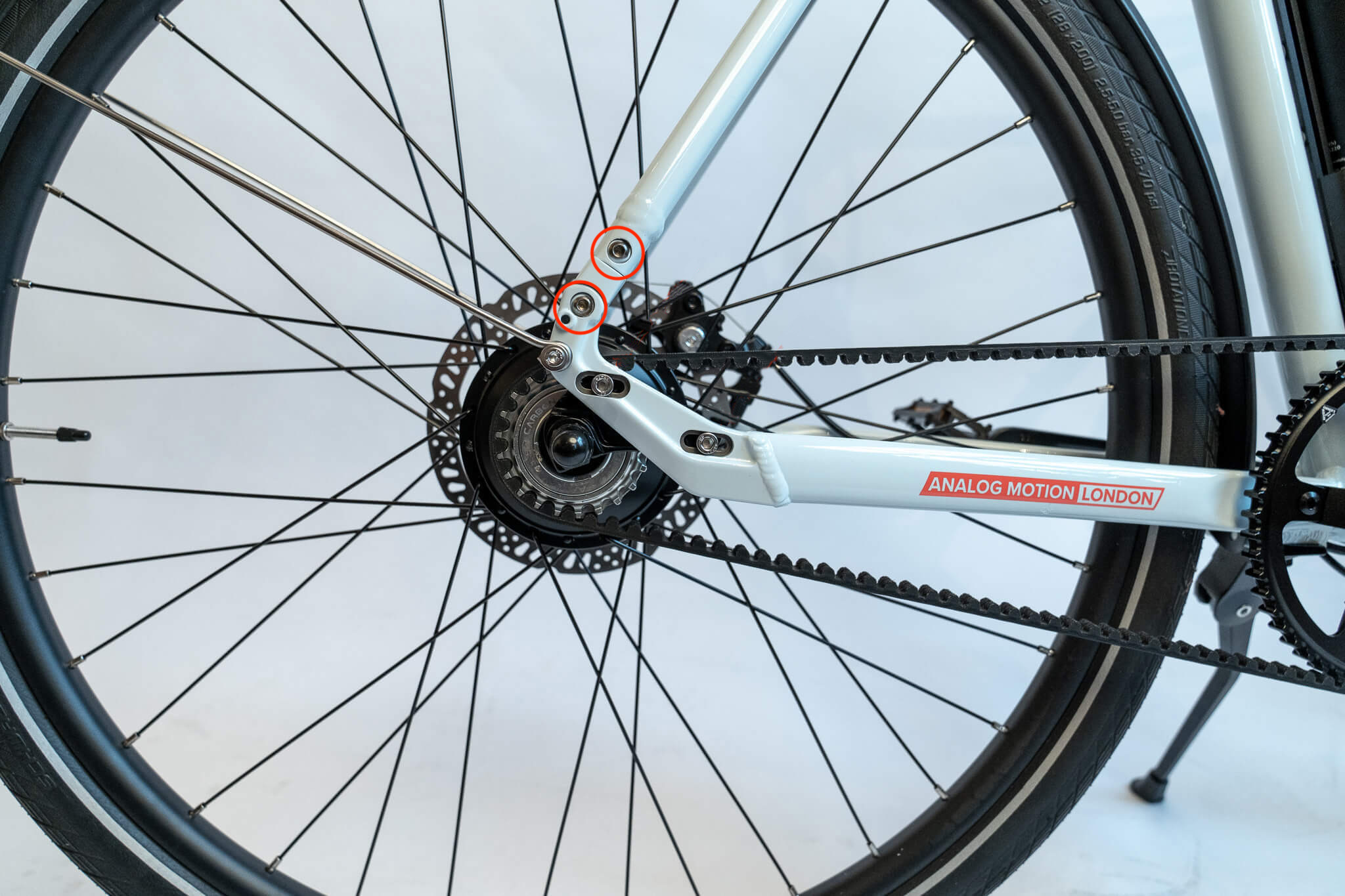

![]() | Dropouts bolts: M6x14mm (screw size x length) |
![]() | Frame break bolts: M6x16mm (screw size x length) button head |
Other useful information
Seatpost diameter: 30.4mm
Seatpost clamp: 34.9mm
Steerer: 1 1/8"
Handlebar clamp diameter: 25.4mm
Handlebar diameter: 22.2mm
